| COLOR: | Pink |
| Maximum load Weight: | 150 kgs |

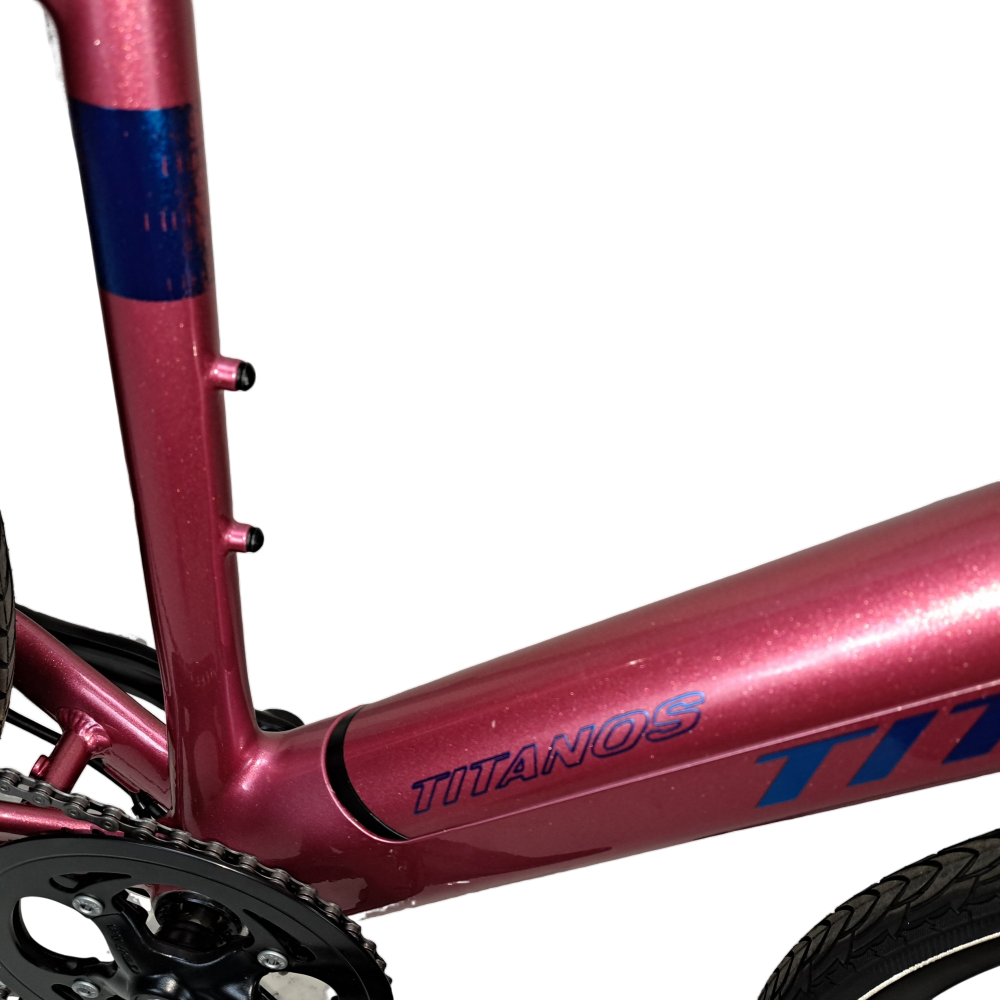

| Frame's material: | AL-6061-T4-T6,700c*460mm, Eel - D/T pipe REENTION-MINI:AL-6061-T4-T6, ROAD Frame FM-C-T700c*460mm,:QR:10mm/138mm/L, Disc-post mpunt, FC:34T,BB-BSA,Tir:700"*40C,TIG-Fish scale welding+PUTTY |

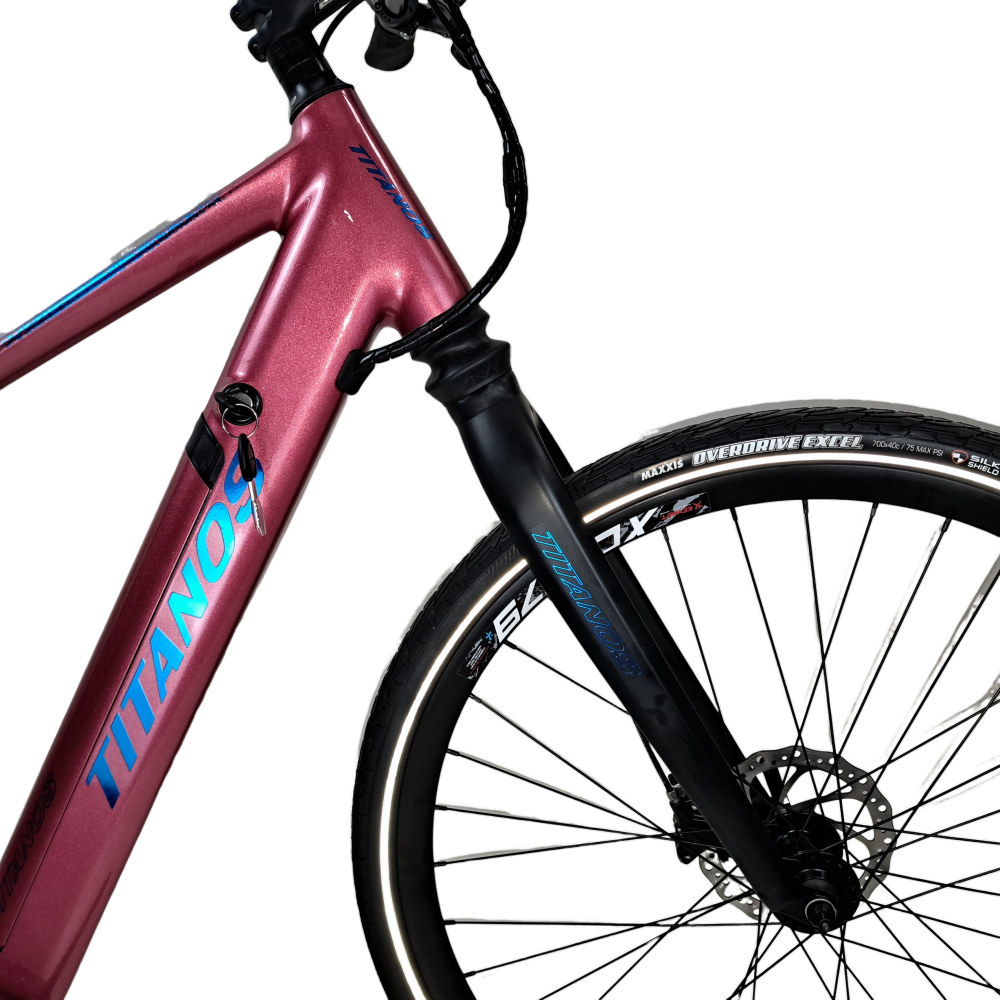

| Suspension Fork : | Road 700C Trekking , Steerer tube,AL-6061,:HLOS -D56W74-WZ, (1-1/8”~1-1/2”) ,9*100 ,POST MOUNT Disc ,brake AC length:435mm Offset 45mm700*45c-74mm,TIG,M12*O.L.D:100mm/L |
| Gradeability | 30° |
| Drive mode: | power assist, electric,Rear wheel |
| Display: | LCD color display,DS5010,1.3-inch |

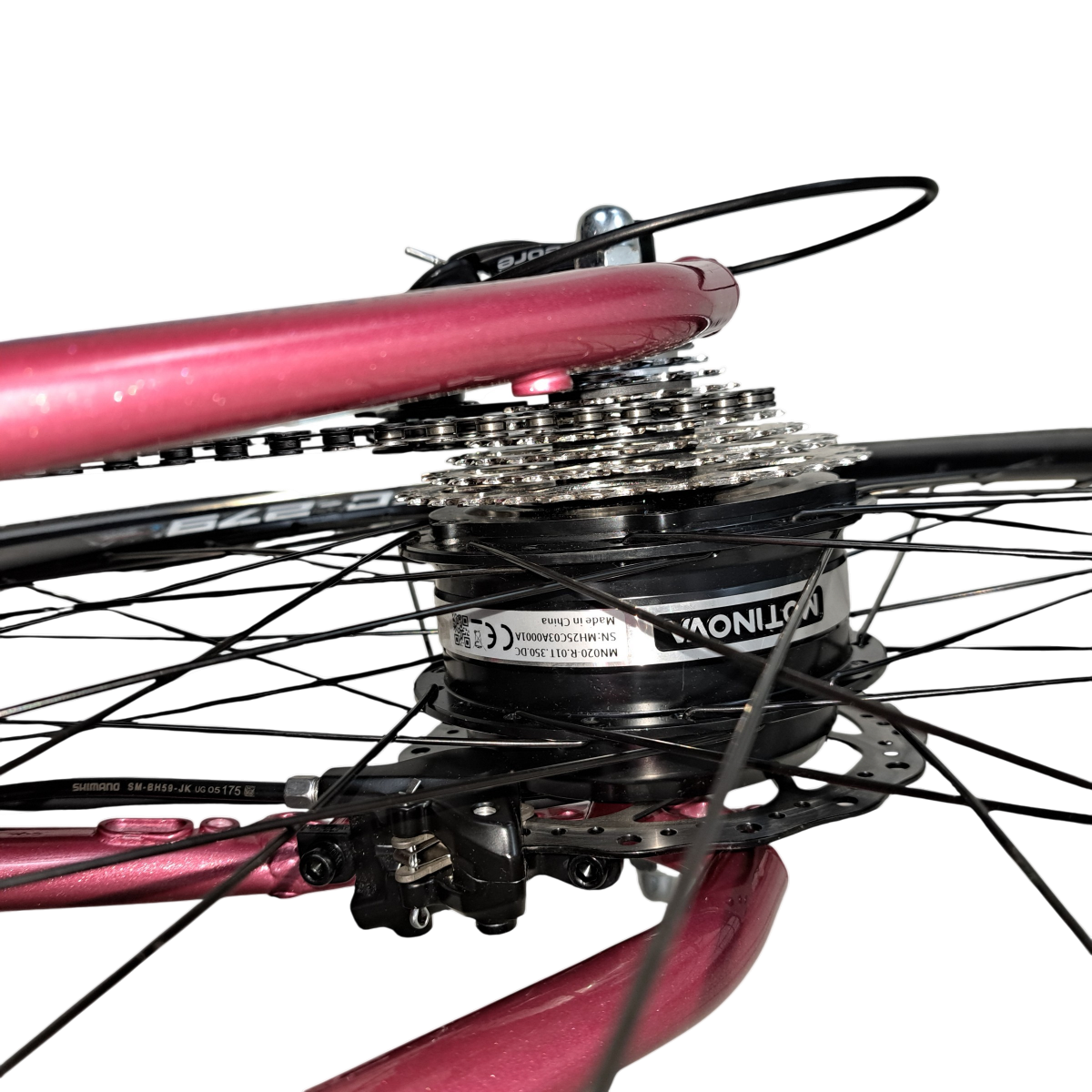

| Moto | MN020.350.D X , Rated Voltage: 36V Rated Power: 350W Max. drive torque: 45Nm, NM030-250W,O.L.D:138mm,Cassette , Can Bus Baud Rate: 250kbit/s 36H* 12G |
| Meter panel | DS5010,1.3,VA CANBUS,Communication cable includes waterproof cable, but does not include Bluetooth. |
| Charger : | SC201-T01- Q6, Rated Voltage: 36V Rated Power: 350W CanBus Baud Rate: 250kbit/s SIZE:74*45*29mm |
| Battery | eel-mini-set 36V10.4AH, 104P Voltage : 36V, Capacity :10.4Ah( Tenpower 18650 Cell ) Support up to 20A for 30 seconds discharging current |
| Battery case | CP000325 , MINI 30pcs, upper case 18650 flame retardant ABS black |
| Shift sensor | MCS02A-12- L150 , Cadence sensor, |
| Motor power: | 36V*350w |
| Gear: | Shimano 1*9 speed |
| Handle Bar | HBL-RD-088 90-420,Carbon one-piece, Road Handlebar Flat tube ￠31.8mm Drop:C-C *80/RACH: C-C*120 Size(mm): 400Weight: 361g ±10g ,Sand blast color + UD, Titanos logo |
| Seat Post | AL6061 Water Droplet. Alien |
| Saddle | 1478N,NP05,VA16019,BLK,1478N-256G |
| Rear Derailleur | REAR DERAILLEUR, RD-M591-L, DEORE, SGS 9-SPEED TOP-NORMAL DIRECT ATTACHMENT, BLACK, BULK |
| Shift Lever: Right | SHIFT LEVER, SL-M3000-R, ACERA, RIGHT, 9-SPEED, RAPIDFIRE PLUS, 2050MM INNER, W/ OPTICAL GEAR DISPLAY, BULK |
| Braking Set: | DISC BRAKE ASSEMBLED SET, BL-MT201(L/R), BR-MT200(F), BLACK, W/O ADAPTER, RESIN PAD(W/O FIN), |
| Wheel Set: Rim | 29/700C Disc rim, 29"x700c XC-279 36H/BLK F/V W/23.5*H/30,Disc13H*36H, BLK,Double Layer, Disc--Center LOCK , 4pcs ABI Ceramic Bearing,O.L.D 100mm/L ,Spoke:PSR13/P13,Stainless Steel 13#Black,Copper Head,*72PCS |
| Tire size: | MAXXIS,700*38c M2018RU,RAMBLER, .E-GRAVEL .FT. TLR.DKFW2 314/458. 2PLHO .2L.35-60psi/ 120tpi |
| Cassette Sprocket | CASSETTE SPROCKET, CS-HG61, 9-SPEED 11-13-15-17-20-23-26-30-34T(AU) BULK |
| Chain | Shimano LG500-GYGY, 9/10/11-S grey 116L |
| Tire size: | 700*45C,Gravel,700x45C,M2018,RURAMBLER ,LOgO: White ,Foldable,,TL-Tubeless Ready,Normal,EXO,E-25,TPI-120,550g |
| Maximum speed: | 25 km/h |
| Frame : AL-6061-T4-T6,700c*460mm, Eel - D/T pipe REENTION-MINI:AL-6061-T4-T6, ROAD Frame FM-C-T700c*460mm,:QR:10mm/138mm/L, Disc-post mpunt, FC:34T,BB-BSA,Tir:700"*40C,TIG-Fish scale welding+PUTTY | Fork : Road 700C Trekking , Steerer tube,AL-6061,:HLOS -D56W74-WZ, (1-1/8”~1-1/2”) ,9*100 ,POST MOUNT Disc ,brake AC length:435mm Offset 45mm700*45c-74mm,TIG,M12*O.L.D:100mm/L |
| Drive mode: : power assist, electric,Rear wheel | Display: : LCD color display,DS5010,1.3-inch |
| Motor : MN020.350.D X , Rated Voltage: 36V Rated Power: 350W Max. drive torque: 45Nm, NM030-250W,O.L.D:138mm,Cassette , Can Bus Baud Rate: 250kbit/s 36H* 12G | Charger : : SC201-T01- Q6, Rated Voltage: 36V Rated Power: 350W CanBus Baud Rate: 250kbit/s SIZE:74*45*29mm |
| Battery: : eel-mini-set 36V10.4AH, 104P Voltage : 36V, Capacity :10.4Ah( Tenpower 18650 Cell ) Support up to 20A for 30 seconds discharging current | Motor power: : 36V*350w |
| Gear : Shimano 1*9 speed | Handle Bar : HBL-RD-088 90-420,Carbon one-piece, Road Handlebar Flat tube ￠31.8mm Drop:C-C *80/RACH: C-C*120 Size(mm): 400Weight: 361g ±10g ,Sand blast color + UD, Titanos logo |
| Seat Post : AL6061 Water Droplet. Alien | Saddle : 1478N,NP05,VA16019,BLK,1478N-256G |
| Rear Derailleur : REAR DERAILLEUR, RD-M591-L, DEORE, SGS 9-SPEED TOP-NORMAL DIRECT ATTACHMENT, BLACK, BULK | Shift Lever: Right : SHIFT LEVER, SL-M3000-R, ACERA, RIGHT, 9-SPEED, RAPIDFIRE PLUS, 2050MM INNER, W/ OPTICAL GEAR DISPLAY, BULK |
| Brake : DISC BRAKE ASSEMBLED SET, BL-MT201(L/R), BR-MT200(F), BLACK, W/O ADAPTER, RESIN PAD(W/O FIN), | Wheel Set: Rim : 29/700C Disc rim, 29"x700c XC-279 36H/BLK F/V W/23.5*H/30,Disc13H*36H, BLK,Double Layer, Disc--Center LOCK , 4pcs ABI Ceramic Bearing,O.L.D 100mm/L ,Spoke:PSR13/P13,Stainless Steel 13#Black,Copper Head,*72PCS |
| Tire : MAXXIS,700*38c M2018RU,RAMBLER, .E-GRAVEL .FT. TLR.DKFW2 314/458. 2PLHO .2L.35-60psi/ 120tpi | Cassette Sprocket : CASSETTE SPROCKET, CS-HG61, 9-SPEED 11-13-15-17-20-23-26-30-34T(AU) BULK |
| Chain : Shimano LG500-GYGY, 9/10/11-S grey 116L | Maximum speed: : 25 km/h |
| Gradeability : 30° | Meter panel : DS5010,1.3,VA CANBUS,Communication cable includes waterproof cable, but does not include Bluetooth |
| Battery case : CP000325 , MINI 30pcs, upper case 18650 flame retardant ABS black | Shift sensor : MCS02A-12- L150 , Cadence sensor |
